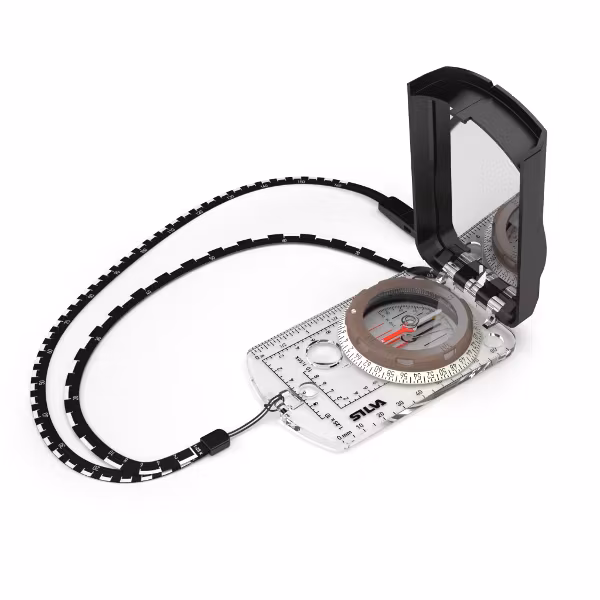

SILVA KARTKOMPASS 16DCL-6400/360

Kompassen för erfarna navigatörer - som används av NATO-styrkor runt om i världen. Används huvudsakligen av infanteriet som soldatens eller officerens kompass.

Kompassen har en lysande graderingsring och markeringar för kompassläsning i mörkret. En gång aktiverad av dagsljus eller ficklampa ger det upp till 4 timmars ljus i mörker. Den medföljande skalan och lutningskortet gör det lättare att snabbt göra en avvägning av din rutt eller planera din rutt i förväg.

Vattensäker

Kartskalor i mm, tum; GPS skalor, 1:25k, 1:50k

Inbygd kompenserare för magnetisk missvisning

Inbygd klinometer

Självlysande markeringar

Fötter av silikongummi

Kompasshus

Syftningsspegel med syftningshål

inbyggt förstoringsglas för kartläsning

Avtagbar snodd med säkerhetsspänne

PRODUCT FEATURES

Type of compass SILVA 1-2-3 System, baseplate,
mirror sighting compass
Compass capsule / needle Liquid filled capsule
Sapphire jewel bearing
High quality steel needle
Hardened steel pivot
Sighting System Mirror
Magnifying lens Yes
Declination adjustment Yes
Clinometer Yes
Luminous markings Yes
Luminaous graduation ring Yes
Illumination / active time
after activation in light 4 hours
Silicon friction feet Yes
Other Tactile grip ring
Patented red/black N/S lines in capsule
GPS scales
Complete baseplate cover

INCLUDED

Scale lanyard (1:24k, 1:25k, 1:50k and 1:62.5k), slope card

SPECIFICATIONS

Graduation 6400/360
Resolution mils / degrees 50 / 2
Measuring scales Base plate: mm, inch
UTM position plotting
scales (Romer scales) 1:25k, 1:50k
Settling time from 90
degree angle within +/- 3 deg 2.7 sec
Settling time from 90
degree angle to complete rest 5 sec
Accuracy +/- 17.8 mils / 1 degree
Water resistance Waterproof
Altitude use 5000m@-15 C
Impact resistance 30g in XYZ directions and free fall from
1,5 m height into gravel
Temperature operating range -30 to +60 C
Material Acrylic/PC/ABS/TPU/Acetal
Size (mm) 108x64x20
Weight g 86
Warranty 5 Years
Art.No. 36814-9511 (MN)
36814-9513 (ME)
36814-9515 (MS)

The sighting compass for experienced navigators – used by NATO Forces around the world.
Mainly used by the infantry as a soldier’s or officer’s compass. Additional features include
measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated
adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. The
compass has a luminous graduation ring and markings for compass reading in the dark. Once
activated by daylight/flashlight it will give light up to 4 hours of light. The included scale lanyard
and slope card makes it easier to quickly make a distance judgement of your route or to plan
your route in advance.
